Diesel Unloading Flowmeter
Diesel Unloading Flowmeter

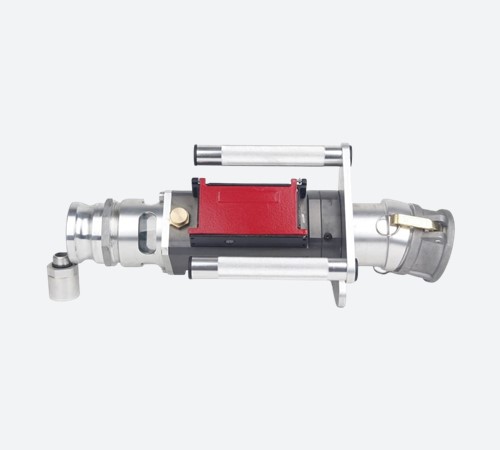

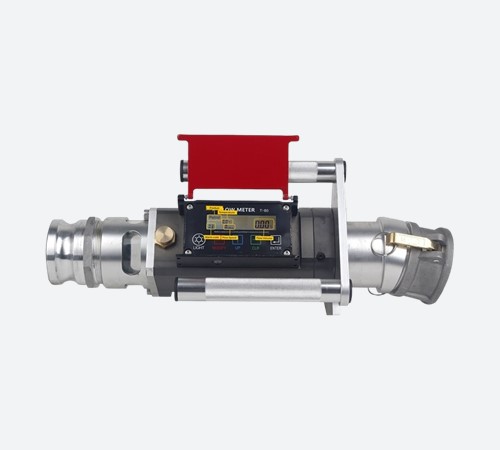

TM-80 mobile turbine meter, explosion proof, used to unloading diesel, gasoline and kerosene on fuel tank for fuel & chemical industry. It is easy, quick coupling to connect pipe and with advantage of high accuracy and repeatability. Product Benefits: Quick & Easy to Use; Portable & Autonomous; Lightweight & Compact; Multi-function; Low Purchase Drop; No Fuel Residue; Easy Maintenance.
Model
TM80
Nominal Diameter
DN80
Connection Types
Quick Coupling
Measurement Range
130~1300L/min
Pressure Class
0.5MPa
Temperature Range
-25°C ≤ Ta ≤ + 55°C
Voltage
DC3.6V
Protection Degree
IP67
Accuracy Grade
± 0.2%
Explosion Proof Marking
Ex ia IIB T4 Ga
Model
TM80
Nominal Diameter
DN80
Connection Types
Quick Coupling
Measurement Range
130~1300L/min
Pressure Class
0.5MPa
Temperature Range
-25°C ≤ Ta ≤ + 55°C
Voltage
DC3.6V
Protection Degree
IP67
Accuracy Grade
± 0.2%
Explosion Proof Marking
Ex ia IIB T4 Ga
