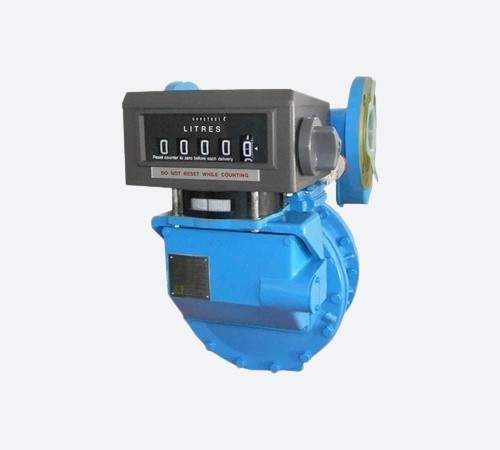

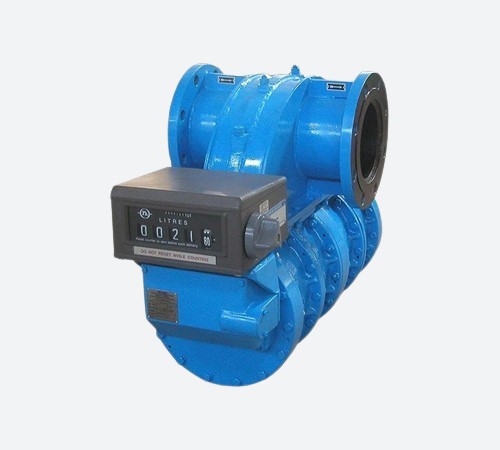

Rotary Vane PD Flowmeter
Rotary Vane PD Flowmeter
The Rotary Vane PD Flowmeter provides highly accurate volumetric flow measurement for a wide range of liquids, including viscous and corrosive fluids. Designed for industries like oil, gas, chemicals, and food, it ensures reliable, durable, and efficient performance.
Line Size
2", 3", 4"
Application Media
Diesel and Alcohol
Operating Temperature
70 Deg C
Display Type
Mechanical and Digital
Operating Pressure
10 Bar
Accuracy
+/- 0.1 Percentage
Model Name/Number
PDM 3 and PDM 4
Flow Range
35-5500 L/Min
Ambient Temp
40 deg C
Displays Size
1"
Power
230V
Diameter
80 mm
Supply Voltage
230V
Weight
100 Kg
Color
Yellow
Material
Cast Iron and Aluminium
Portable
Yes
Flange Standard
Class 150
I Deal In
New and Second Hand
Alarms Control Relay
2 relay
Nominal K Factor
154
Empty Pipe Detection
No
IP Rating
FLP / IP 67
Coil Housing
Aluminium
End Connection
Flange, NPT or BSPT etc
Volume
0.681 L
Max Pressure
10 Bar
Measurement Mode
Liter
Meter Body
Aluminum
Minimum Order Quantity
1
Line Size
2.5 inch
Application Media
Diesel and Alcohol
Operating Temperature
70 Deg C
Display Type
Mechanical and Digital
Operating Pressure
10 Bar
Accuracy
+/- 0.1 Percentage
Model Name/Number
PDM 3 and PDM 4
Flow Range
35-5500 L/Min
Ambient Temp
40 deg C
Displays Size
1"
Power
230V
Diameter
80 mm
Supply Voltage
230 V
Weight
100 Kg
Color
Yellow
Material
Cast Iron and Aluminium
Portable
Yes
Flange Standard
Class 150
I Deal in
New and Second Hand
Alarms Control Relay
2 relay
Nominal K Factor
154
Empty Pipe Detection
No
IP Rating
FLP / IP 67
Coil Housing
Aluminium
End Connection
Flange, NPT or BSPT etc
Volume
0.681 L
Max Pressure
10 Bar
Measurement Mode
Liter
Meter Body
Aluminium
Minimum Order Quantity
1
